3D printed box for Air Quality Monitor II - jarekh3 - 28-04-2019




Project available here:
outdoor version,
indoor version.

If you are printing from PLA then I suggest you paint it.
Seal the connection points with silicone (especially the antenna cover).

---

RE: Case for AQM II - werk_ag - 28-04-2019

Hi Jarek,

As all your other designs it looks perfect!
I like the detail on the shield for the PMS7003 sensor, separating the air intake from the air outlet. Well done.

I think its smart, just having to change the front panel for the version with or without the OLED display.
Thank you very much.

Rgs

---

RE: Case for AQM II - hornychz - 28-04-2019

(28-04-2019, 15:30)jarekh3 Wrote:  Hi
I present the progress of design work on the case to AQM II. This is the outdoor version, without display.

---

RE: Case for AQM II - jarekh3 - 29-04-2019

Well. I think the project is finished.
Now there will be several days of printing, matching, etc. The publication should take place at the end of the week.
Outdoor version in preparation.

---

RE: Case for AQM II - jarekh3 - 29-04-2019

This is the version in which SHT31 and MH-Z19 are soldered directly to the pins:


I can prepare a version with sockets but it will be wider about 12-15mm (internal version even 25mm).

---

RE: Case for AQM II - werk_ag - 29-04-2019

Hello Jarek,

Today I noticed on eBay that some sellers are selling the PMS7003 with a "new" adapter.

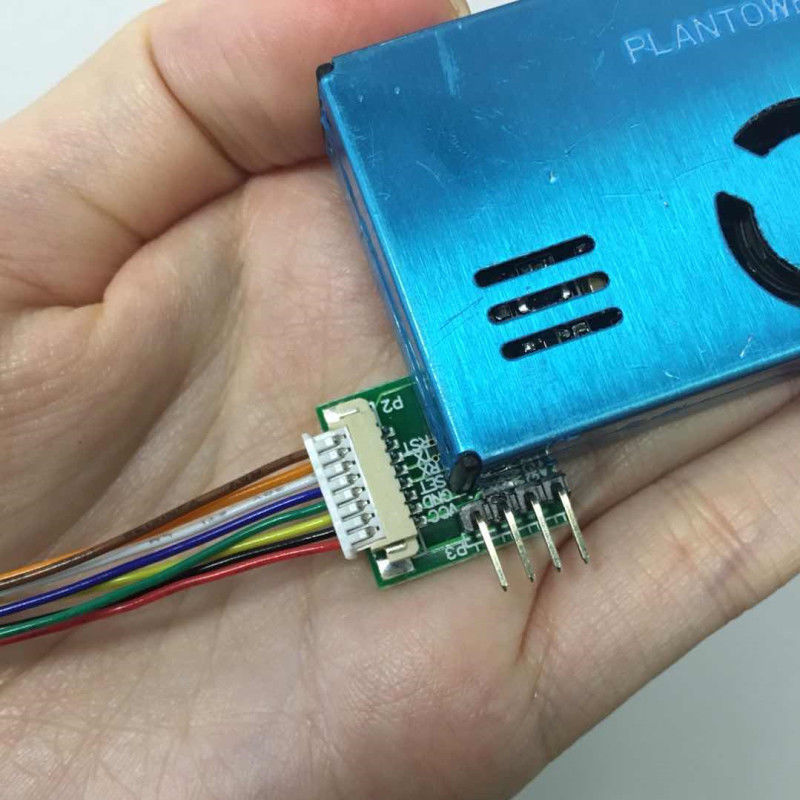

This is the "old" adapter:

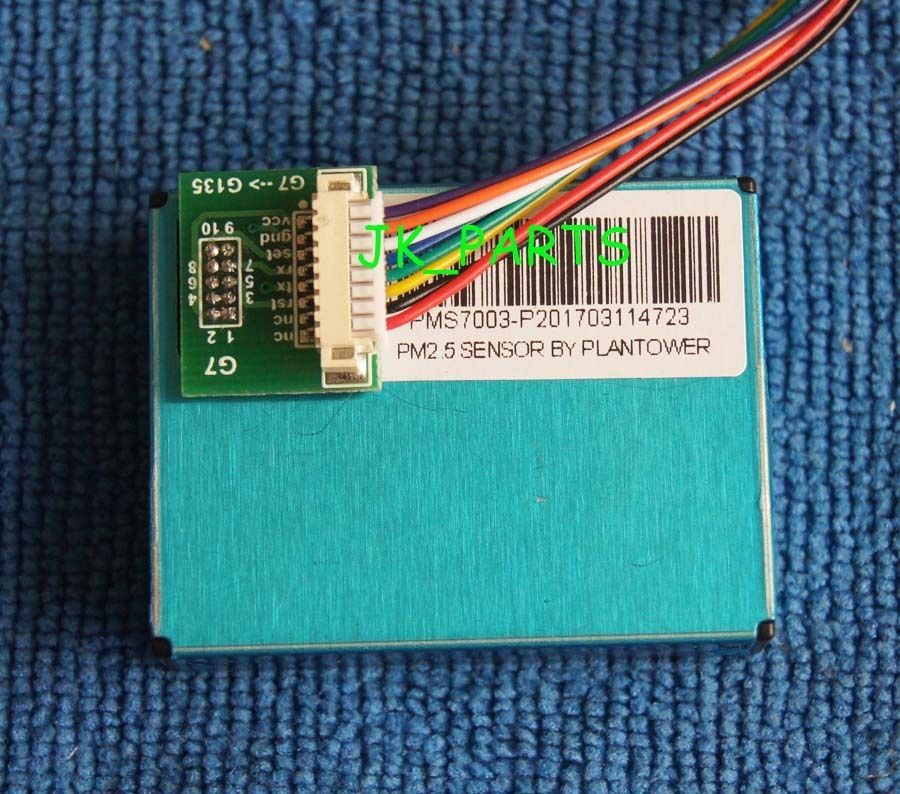

and this one, is the "new" adapter:




Do you think this new adapter will also fit, or it is to large?
If the "new" one don't fit, we can always advise people to be careful when ordering the PMS7003, and choose a seller which sells them with the "old" adapter.

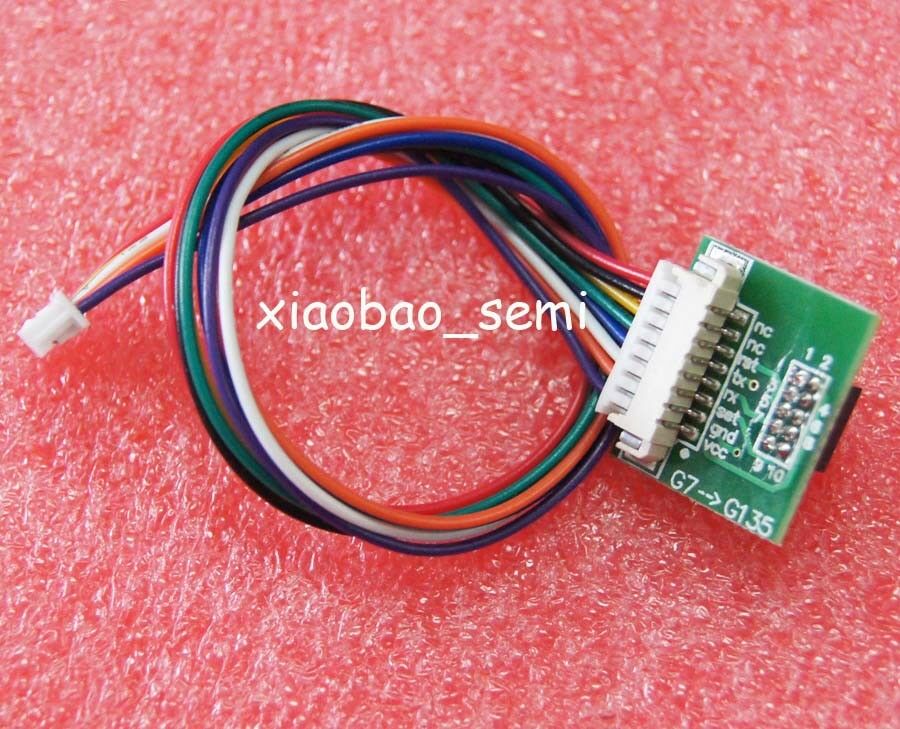

There is also the option to order the adapter separately, it costs only around 2€




Rgs

---

RE: Case for AQM II - jarekh3 - 29-04-2019

I ordered the same adapter. He should come on Tuesday. I will check and possibly improve.

---

RE: Case for AQM II - Barrow4491 - 29-04-2019

Hi
The case looks fabulous
Are you doing a separate front panel for the display model?
I think a version with sockets would definitely be needed as no doubt over time the sensors will need changing and desoldering without damage to the PCB can be extremely difficult.
Regardless your design is absolutely perfect and I will definitely make one when I return from holidays
Regards
Jim

---

RE: Case for AQM II - dormani - 29-04-2019

I am running the original AQM. I assume that this enclosure will not be suitable for that version and I must upgrade.

---

RE: Case for AQM II - jarekh3 - 29-04-2019

@Werk_AG
I think the problem is being solved. I will need to cut off the pins.



@Barrow4491  You are right. This is the correct solution:



@dormani  Wait a few days. I will try to adapt the housing to the old version.

---
