Thank you for the quick feedback.
Have a nice day.
Rgs.
Werk_AG

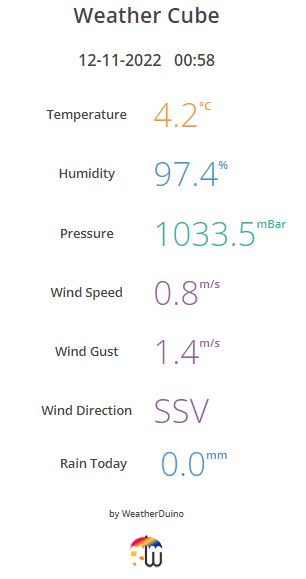

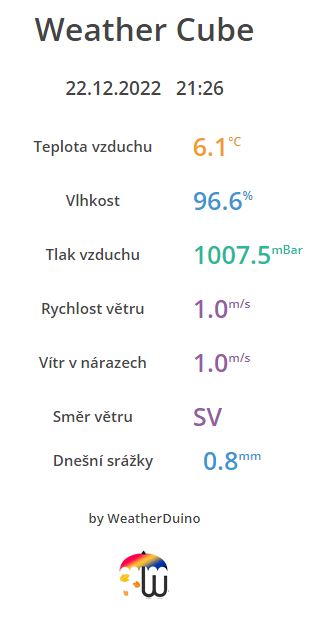

This day a new one - with some smaller letters, autorefresh every 30 seconds, code utf-8 and cz:
[
attachment=3138]
Code:
String SendHTML(float Temperature,float Humidity,float Pressure, float W_Speed, float W_Gust, char* W_Dir, float Rain_Today)
{
now = time(nullptr);
struct tm* timeInfo;
timeInfo = localtime(&now);
String ptr = "<!DOCTYPE html>";
ptr +="<html>";
ptr +="<head>";
ptr +="<title>Weather Cube - Mini Weather Station</title>";
ptr +="<meta charset='utf-8'>";
ptr +="<meta http-equiv='refresh' content='29'>";
ptr +="<meta name='viewport' content='width=device-width, initial-scale=1.0'>";
ptr +="<link href='https://fonts.googleapis.com/css?family=Open+Sans:300,400,600' rel='stylesheet'>";
ptr +="<style>";
ptr +="html { font-family: 'Open Sans', sans-serif; display: block; margin: 0px auto; text-align: center;color: #444444;}";
ptr +="body{margin: 0px;} ";
ptr +="h1 {margin: 25px auto 25px;} ";
ptr +=".side-by-side{display: table-cell;vertical-align: middle;position: relative;}";
ptr +=".text{font-weight: 600;font-size: 15px;width: 200px;}";
ptr +=".reading{font-weight: 600;font-size: 25px;padding-right: 25px;}";
ptr +=".temperature .reading{color: #F29C1F;}";
ptr +=".humidity .reading{color: #3B97D3;}";
ptr +=".pressure .reading{color: #26B99A;}";
ptr +=".wind .reading{color: #955BA5;}";
ptr +=".rain .reading{color: #3B97D3;}";
ptr +=".superscript{font-size: 12px;font-weight: 600;position: absolute;top: 4px;}";
ptr +=".data{padding: 10px;}";
ptr +=".container{display: table;margin: 0 auto;}";
ptr +="</style>";
ptr +="</head>";
ptr +="<body>";
ptr +="<h1>Weather Cube</h1>";
ptr +="<h3>";
sprintf(CHAR_buf, "%02d.%02d.%d", timeInfo->tm_mday, timeInfo->tm_mon+1, timeInfo->tm_year + 1900);
ptr +=CHAR_buf;
ptr +=" ";
sprintf(CHAR_buf, "%02d:%02d", timeInfo->tm_hour, timeInfo->tm_min);
ptr +=CHAR_buf;
ptr +="</h3>";
ptr +="<div class='container'>";
ptr +="<div class='data temperature'>";
ptr +="<div class='side-by-side text'>Teplota vzduchu</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(Temperature,1);
if (Temp_Display_Unit == 0) ptr +="<span class='superscript'>°C</span></div>";
else ptr +="<span class='superscript'>°F</span></div>";
ptr +="</div>";
ptr +="<div class='data humidity'>";
ptr +="<div class='side-by-side text'>Vlhkost</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(Humidity,1);
ptr +="<span class='superscript'>%</span></div>";
ptr +="</div>";
ptr +="<div class='data pressure'>";
ptr +="<div class='side-by-side text'>Tlak vzduchu</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(Pressure, 1);
if (ATM_Display_Unit == 0) ptr +="<span class='superscript'>mBar</span></div>";
else ptr +="<span class='superscript'>inHg</span></div>";
ptr +="</div>";
ptr +="<div class='data wind'>";
ptr +="<div class='side-by-side text'>Rychlost větru</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(W_Speed, 1);
if (Wind_Display_Unit == 0) ptr +="<span class='superscript'>Km/h</span></div>";
else if (Wind_Display_Unit == 1) ptr +="<span class='superscript'>mph</span></div>";
else if (Wind_Display_Unit == 2) ptr +="<span class='superscript'>m/s</span></div>";
else ptr +="<span class='superscript'>Kts</span></div>";
ptr +="</div>";
#if (GET_WEATHERDUINO_DATA == 1)
ptr +="<div class='data wind'>";
ptr +="<div class='side-by-side text'>Vítr v nárazech</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(W_Gust, 1);
if (Wind_Display_Unit == 0) ptr +="<span class='superscript'>Km/h</span></div>";
else if (Wind_Display_Unit == 1) ptr +="<span class='superscript'>mph</span></div>";
else if (Wind_Display_Unit == 2) ptr +="<span class='superscript'>m/s</span></div>";
else ptr +="<span class='superscript'>Kts</span></div>";
ptr +="</div>";
ptr +="<div class='data wind'>";
ptr +="<div class='side-by-side text'>Směr větru</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=W_Dir;
ptr +="</div>";
ptr +="<div class='data rain'>";
ptr +="<div class='side-by-side text'>Dnešní srážky</div>";
ptr +="<div class='side-by-side reading'>";
ptr +=String(Rain_Today, 1);
if (Rain_Display_Unit == 0) ptr +="<span class='superscript'>mm</span></div>";
else ptr +="<span class='superscript'>in</span></div>";
ptr +="</div>";
#endif
ptr +="<h5>by WeatherDuino</h5>";
ptr +="<img src='http://www.weatherduino.com/WD_services/images/WeatherDuino_50.png' alt='WeatherDuino'>";
ptr +="</div>";
ptr +="</div>";
ptr +="</body>";
ptr +="</html>";
return ptr;
}
Hello,
The childern's dollhouse has now its own meteostation...
[
attachment=3263]
Zdenek,
What to say... Just beautiful! You are a very talented and creative man.
Don't tell me you did the dollhouse too?
Season greatings.
(17-12-2024, 00:09)werk_ag Wrote: [ -> ]Don't tell me you did the dollhouse too?
Season greatings.
Hello, my friend.
The answer is yes and no.
The kitchen downstairs and the bathroom upstairs are from my very early youth, they belonged to my sister. My daughter played with them (my sister only has boys) and now my grandchildren play with them (and my wife and I). But even these spaces are not in their original condition anymore, I have repaired them many times over the years. I have explicitly saved a lot of older furniture, for example, only the front headboard is left from the double beds, only one leg, one hinge and three horizontal boards from the secretary, etc. I then bought a few more at Chinese markets.
And the entire structure of the "house" is from this autumn, when I decided that after 65 years I had to finally give it "some" style. It will definitely continue to develop, I'm already thinking about front opening walls with windows "to the street" etc....
And when I was rescuing the television set from the rubble, I thought of our WeatherCube. It took only 2 days to repair it and implement...
Season greatings too.
Hello Zdenek,
The project Dollhouse is beautiful with inside the mini-Weather Cube, my complements!
Kind regards, Wim
That cabinetry is very impressive Zdenek! Well done!
